Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)

Manufacturer	NORRES UK LTD
Description	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX) - 202-0050-2014
Part number	202-0050-2014
Hose I.D	50 mm
Total Length	80 mm
Material	Stainless Steel

Modelos CAD

Solicitação de cotação

Seleção de produtos

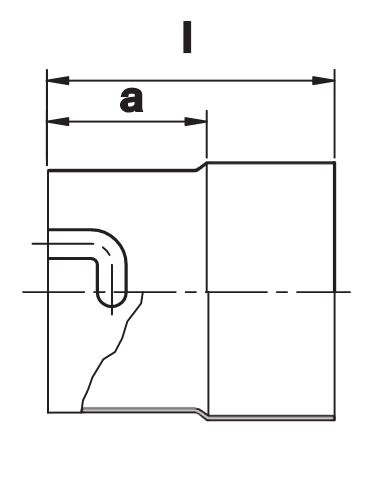

Index	Selector	Order No.	Series	S (mm)	A (mm)	L (mm)	Weight (kg)	Suitable for Hose I.D. (mm)
1	1	202-0050-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	50	80	0.11	50
2	27	202-0060-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	50	90	0.16	60
3	28	202-0070-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	50	90	0.18	70
4	29	202-0080-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	50	90	0.2	80
5	30	202-0100-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	60	110	0.3	100
6	31	202-0120-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	60	110	0.35	120
7	32	202-0125-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1	60	110	0.37	125
8	33	202-0140-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1.5	70	130	0.73	140
9	34	202-0150-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1.5	70	130	0.77	150
10	35	202-0180-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1.5	70	130	0.91	180
11	36	202-0200-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	1.5	90	160	1.33	200
12	37	202-0250-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	2	90	160	2.16	250
13	38	202-0300-2014	Bayonet Fitting 202 with L-Slot Stainless Steel (INOX)	2	100	180	2.87	300

Documentação

Datasheet

Entre em contato com o fornecedor

NORRES UK LTD

NORRES develops, manufactures and distributes hoses and flexible hose system solutions worldwide. With over 300 employees and global locations, we are a National and International leader in the industrial hose industry. The NORRES Group will continue to grow strongly in the future - as a professionally managed medium-sized group with branded products, we are set up solidly.
